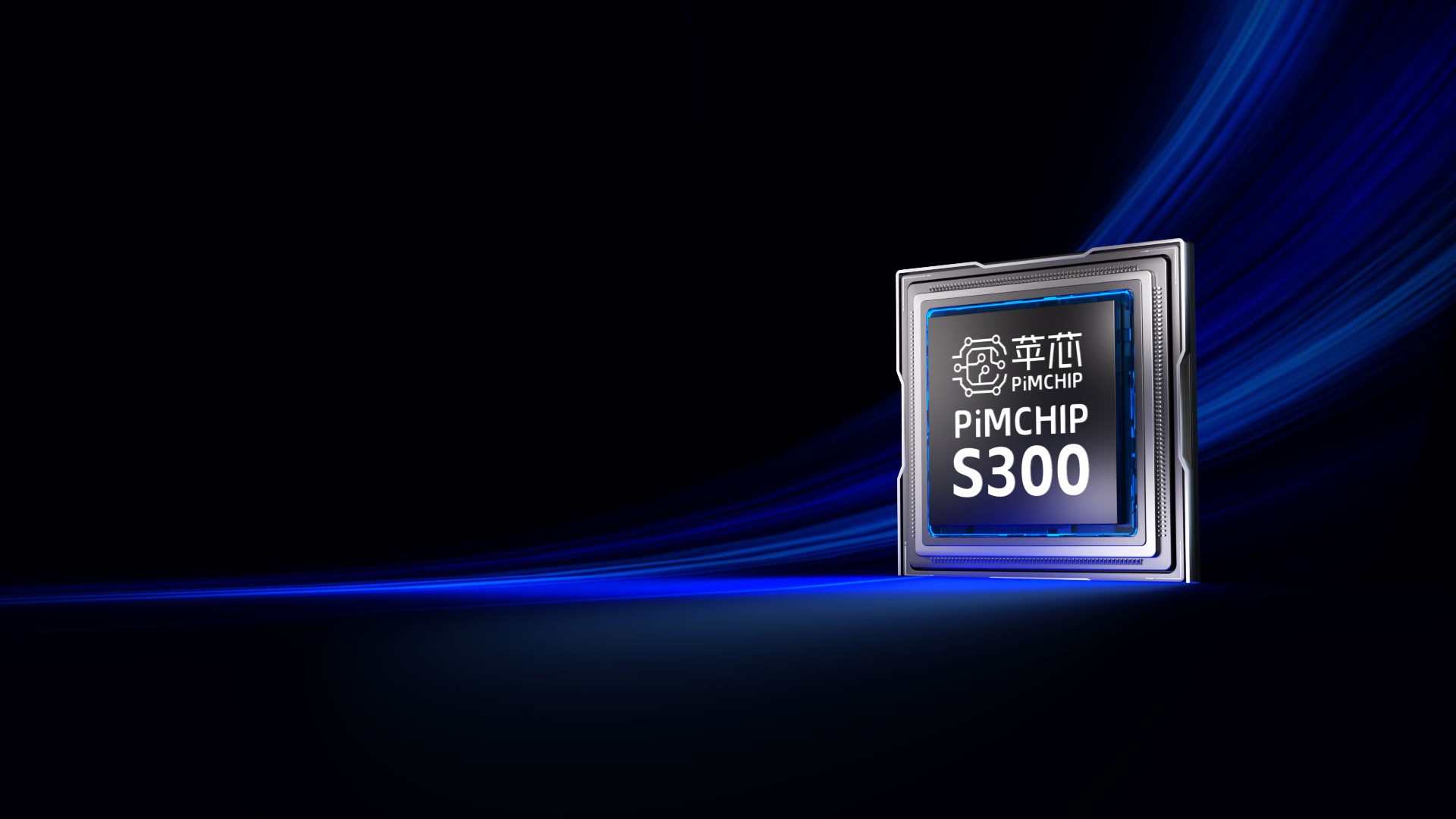

Multimodal intelligent perception and decision-making chip

-S300

Multimodal intelligent perception and decision-making chip

The PIMCHIP-S300 is a multimodal intelligent perception and decision-making AI chip developed by Pimchip Technology based on Processing-In-Memory (PIM) technology. It is equipped with an SRAM-based PIM computing acceleration unit that enables computing in the memory, effectively reducing data transmission during the computation process. This results in a tens to hundreds of times improvement in energy efficiency for the core computing unit, achieving international leading performance and technological breakthroughs. The chip features AI computility integration, multimodal fusion perception, cross-domain intelligent decision-making, ultra-low energy consumption, and extremely fast response. The PIMCHIP-S300 can be applied in various fields such as intelligent industries, intelligent healthcare, and intelligent wearable devices, and is dedicated to providing partners with high-efficiency, small-size, low-energy consumption, and low-cost solutions, empowering diverse application scenarios

Function Points

AI computility integration

Multimodal fusion perception

cross-domain intelligent decision-making

Ultra low-energy consumption wake-up

Self-developed heterogeneous architecture

-S300

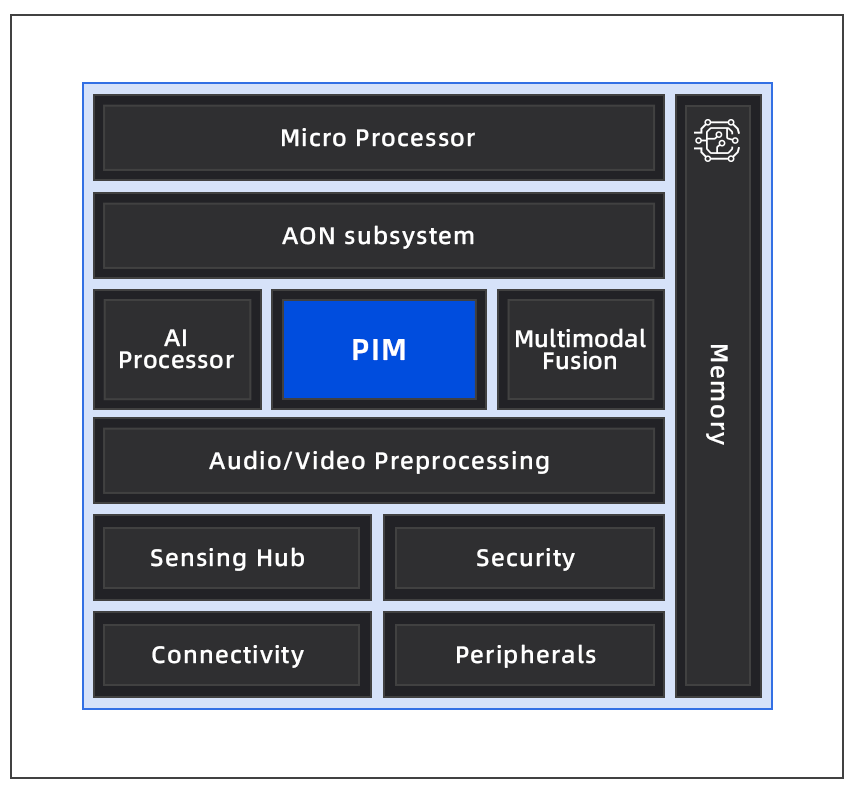

Chip Architecture

-S300

Chip Parameters

mputing
System
CPU

MCU with FPU/MAC for control panel,300 DMIPS

NPU

Neural Networks and CV Acceleration for

computing panel. 0.5 Tops, support int4/8/16

DSP

Audio/Vision Signal processing and

Sensor fusion,100 GMAC

VIdeo
Subsystem
2D Graphics

Scaler、Crop、Zoom、CSC,Blending

Preview stream, 240 * 160@24fps,up to 480 * 320

Snapshot stream,Typical 720P

Video IN

1 * DVP in, resolution up to 2560 * 1440,

8 bits/Pixel,RGB565、YUV422、RGB888

Video Out

4-Wire SPI out ; 240 * 160@24fps,

up to 480 * 320,RGB888

Audio
Subsystem
PDM

* 4

I2S

* 2

HWA

VAD/FFT Accelerator

AON
Subsystem
Low Power

100uW-5mW

Trigger

Customizable Voice,Adjustable Motion,

Temperature,Voltage,Touch

Storage
SRAM

support system SRAM, up to 1792KB

PSRAM

Up to 32MB

Flash

support Nor-flash,up to 32Mb

Others
Connectivities

UART * 4,SPI * 2,I2C * 4

2x SD HC support SDR104/DDR50 and SDIO3.0 eMMC 4.5

Ethernet: Interface:MII/RMII/RGMII

Data Rate:10Mbps/100Mbps/1000Mbps

Peripheral

DMA * 3,Timer * 4,RTC * 1,WDT * 5

ADC * 1 12bit@1MSPS,PWM * 3,GPIO * 40

Security

support SM2/3/4/, AES ,SHA ,RSA ,TRNG,OTP

Turnkey
Solution

RTOS, Middleware,Model Zoo,

One-click AI deployment solution,

One-click binary generation and downloading solution
